STABILITATE ȘI SPAȚIU LIBER
Seria N-250 are un management sporit al spațiului, permițând un aspect mai curat.
Suportul curbat oferă stabilitate in acelasi timp faciliteaza conectarea cu usurinta a dispozitivelor periferice cum ar fi imprimante, aparate de plată și scanere, să fie introduse chiar mai jos in ecranul principal pentru un confort sporit de operare.
Interfete I/O superioare - inferioare
Modelul N-250 vine echipat cu un processor Intel® de înaltă performanță model N97, 16GB memorie RAM si un spatiu de stocare 128GB SSD.

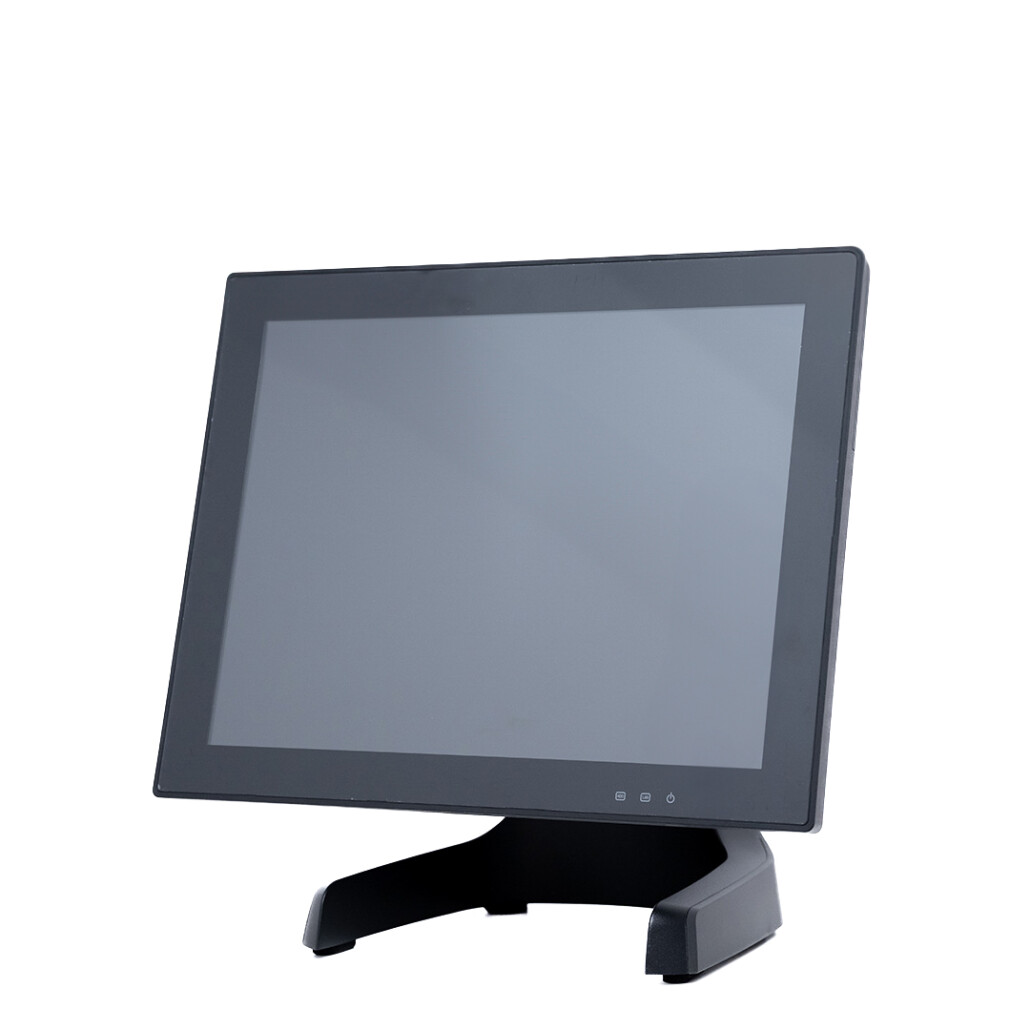

Caracteristici tehnice sistem POS All in One P2C-N250 :
| Sistem |
- Processor
- Intel® Processor N97, up to 3.60 GHz (Fanless)
|
- Chipset / BIOS
- Intel® Alder Lake-N SoC / AMI UEFI
|
- Storage
- 2.5" SATA III SSD 128GB
|
- Memory
- 16GB SO-DIMM
DDR4 3200MHz x 1
|
- Graphics
Intel® UHD Graphics
|
- Multi Monitor
- 3 (# of Displays Supported) - up to 3 monitors (optional)
|
- Expansion Slot
- 1 x m.2 NVMe 1 x m.2 WiFi & Bluetooth (optional)
|
|
| Display |
- Primary Display Type
- 15" LED Backlight (1024 x 768 Resolution)
|
- Touchscreen capacitiv PCAP 10 Point Multi-touch
|
| I/O Interfaces |
- porturi USB : 2 x USB 2.0 (Rear Top x 2), 1 x USB 2.0 (RJ11), 4 x USB 3.0 (Rear Bottom x 4)
|
- 6 porturi seriale : 3 porturi CANON DB9, 2 porturi RJ50 , 1 port RJ11)
|
- Audio : 1 x Audio-out / 3.5mm
|
- Secondary Display
- 1 x DisplayPort (included 1 x USB 2.0 / Power Delivery +12V) *Can be used for HDMI and Standard DVI, VGA monitor by passive cable.
|
- LAN
- 1 x RJ45 (Base-T 10/100/1000 Ethernet)
|
- Speaker (optional)
- 3W x 1
|
| Peripheral Options |
- Secondary Display
- • LCD Type: 9.7" or 15" LCD (USB Port x 1)
• Touch Monitor: 9.7" or 15" LCD with Capacitive Touch (USB Port x 1) - by single cable(no power & USB cable)
• Standard Monitor: supported standard DP, HDMI, DVI, VGA monitor by change monitor cable)
• Standard and Powered DP MST Hub: supported standard or powered(customized) DP MST Hub.
|
- Customer Display (CDP)
- FSTN LCD Type (20 columns x 2 lines)
|
- Card Reader (MSR / SCR)
- Smart Card Reader: ISO/IEC7816 EMV Level 1 / Magnetic Stripe Reader: ISO 7811 ID-1 All tracks *Interface: USB(HID) and RS232C(COM6)
|
- Dallas Reader
- Dallas Reader(i-button): 6 characters / prefix and suffix *Interface: USB(HID) and RS232C(COM6)
|
| Physical Dimension |
- Dimension (W x D x H)
- 362 x 237 x 357 (mm) / 14.2 x 9.3 x 14.0 (inch)
|
- Weight
- 4.5 (Kg) / 9.9 (lb)
|
| Environment |
- Power Supply
- DC 12V/5A (AC 100V~240V, 60W)
|
- Temperature
- Operating Temp : 0~40℃ / Storage Temp : -20~60℃ / Humidity : 10% to 90%
|
- Certifications
- CE, FCC, KC
|
